So far, we’ve compiled and ran all our C code in basically just two steps:

1. Compile the code with GCC, e.g., gcc -o hello hello.c.

2. Run the compiled executable binary from the command line, e.g., ./hello.

Although it may seem like these two steps are all it takes to execute C code, in reality GCC and other tools are doing a lot of extra work to make this happen.

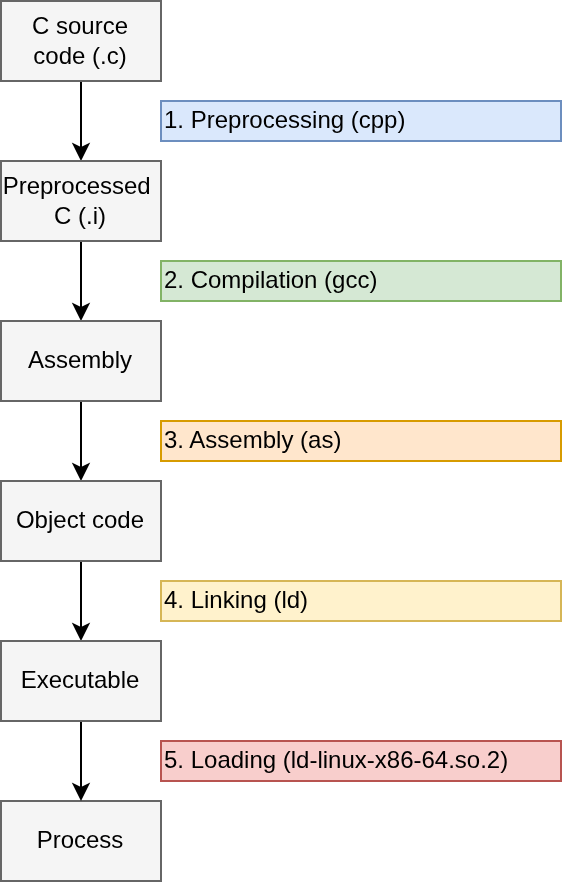

In order to turn your C code into a running executable, your program must goes through 5 steps shown above:

1. Preprocessing: Handles preprocessor directives to include header files, expand macros, and more.

2. Compilation: Converts C code to assembly.

3. Assembly: Turns assembly code into object code.

4. Linking: Combines object files, resolving references to symbols such as functions names, to form a final executable binary (e.g., and ELF file).

5. Loading: Loads the program into memory, resolves references to shared libraries used by the program, and executes it.

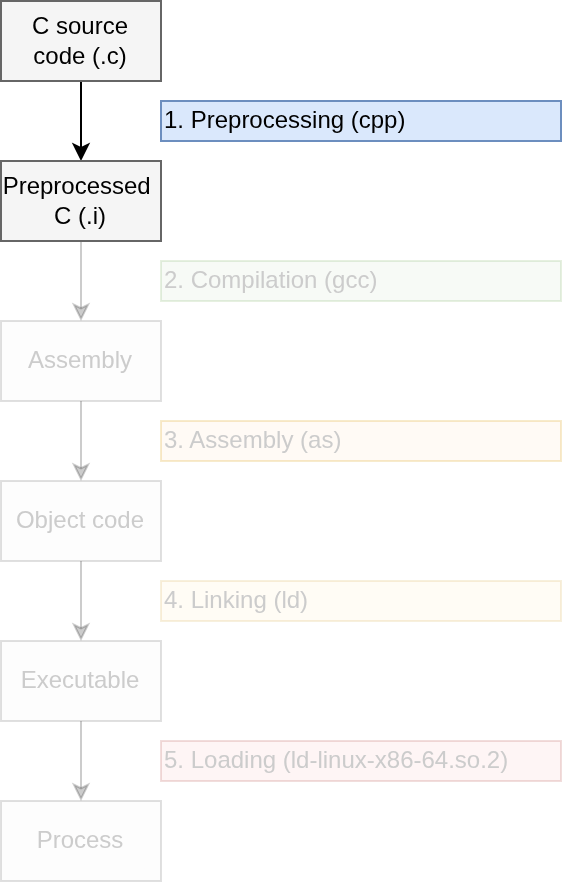

The first step to compiling C code is preprocessing, in which a tool called a preprocessor modifies the text of the input program by executing user-specified preprocessor directives. You are likely familiar with one of these directives already: file inclusion. For instance, consider the following program hello.c, which #includes the header file <stdio.h> for its declaration of the function puts():

#include <stdio.h>

int main(void) {
  puts("Hello, world!\n");
}

It may seem like the above code is what we gets passed to GCC when we invoke the compiler from the command line, but in reality, GCC first preprocesses the code to expand the include directive to the contents of the included file. To test this out, we can invoke gcc with the -E flag to tell the compiler to only perform preprocessing (or invoke the preprocessor directly with cpp). We’ll also add the -P flag to tell the preprocessor to omit line markers from its output, because these are irrelevant to our discussion. Finally, we’ll use the -o flag to specify the output file as hello.i, since .i is conventional file name extension for preprocessed C code:

gcc -E -P hello.c -o hello.i
# or cpp -P hello.c -o hello.i

The output will be quite long, 307 lines of code on my machine! The reason for this is because the preprocessor essentially replaces the line #include <stdio.h> with the entire contents of the stdio.h header file. This simple mechanism allows us to create programs sharing function declarations across multiple files.

Another feature supported by the C preprocessor is macro expansion. During macro expansion, named code fragments called macros are replaced with their definitions. For instance, the following C code defines the macro PI, and invokes it in the function area() to compute the area of the circle with a given radius r:

#define PI 3.14

float area(float r) {
  return PI * r * r;
}

After preprocessing, the definition of PI would be erased, and the invocation of PI would be replaced with its definition, 3.14, resulting in the following C code:

float area(float r) {
  return 3.14 * r * r;
}

This example only scratches the surface of what you can do with macros. If you’d like to learn more about the (sometimes quite cursed) things you can do with macros, and about other preprocessor directives not mentioned here, then check out the GNU C Preprocessor manual.

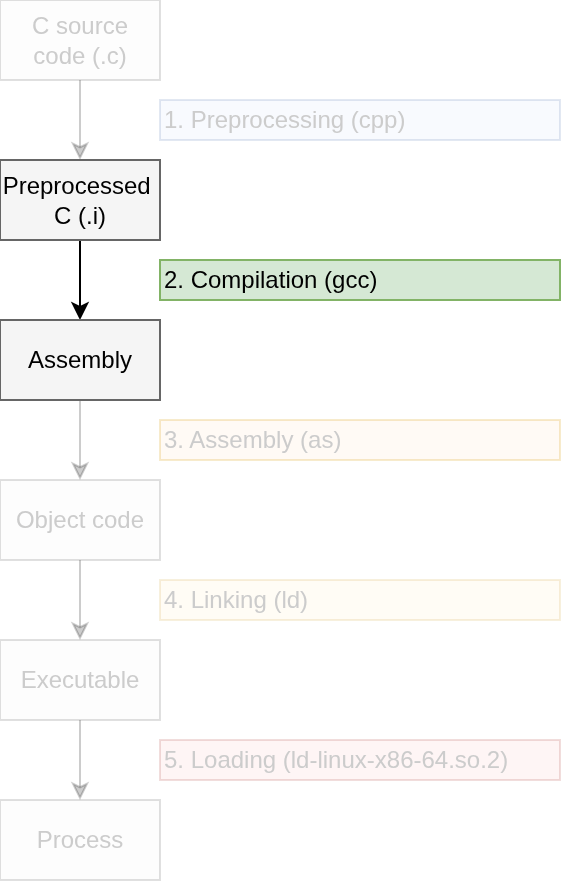

During compilation, the C compiler (e.g., gcc) converts preprocessed C code into assembly code. To see how this works, let’s convert the hello.i file we made in the last example to assembly with gcc. We’ll pass the -S flag to gcc to tell the compiler to only translate its input to assembly. We’ll also pass the -o flag to specify the output file:

gcc -S hello.i -o hello.s

Here’s the resulting assembly file, hello.s:

    .file   "hello.c"
    .text
    .section    .rodata
.LC0:
    .string "Hello, world!\n"
    .text
    .globl  main
    .type   main, @function
main:
.LFB0:
    .cfi_startproc
    endbr64
    pushq   %rbp
    .cfi_def_cfa_offset 16
    .cfi_offset 6, -16
    movq    %rsp, %rbp
    .cfi_def_cfa_register 6
    leaq    .LC0(%rip), %rax
    movq    %rax, %rdi
    call    puts@PLT
    movl    $0, %eax
    popq    %rbp
    .cfi_def_cfa 7, 8
    ret
    .cfi_endproc
.LFE0:
    .size   main, .-main
    .ident  "GCC: (Ubuntu 13.3.0-6ubuntu2~24.04.1) 13.3.0"
    .section    .note.GNU-stack,"",@progbits
    .section    .note.gnu.property,"a"
    .align 8
    .long   1f - 0f
    .long   4f - 1f
    .long   5
0:
    .string "GNU"
1:
    .align 8
    .long   0xc0000002
    .long   3f - 2f
2:
    .long   0x3
3:
    .align 8
4:

We won’t go into detail on what all this means yet, but hopefully you can see that assembly is much less human-readable then C code. Instead of nice structures like if statements and while loops, we only have instructions (e.g., call, movl), operands (e.g., puts@PLT, $0, $eax), and labels (e.g, main). This lack of structure makes it harder for humans to manage complexity in large assembly programs, which is in part why higher-level structured languages like C were invented, to make implementing large programs easier.

The above assembly code is specifically x86_64 assembly, represented using the AT&T dialect. The rest of the assembly examples in this course will x86_64 AT&T syntax assembly, and it will be the target for the compiler we will write.

Although assembly code is lower-level than C code, it still can’t be run by the CPU. To achieve this, we next need to move on to the next phase of the compilation process.

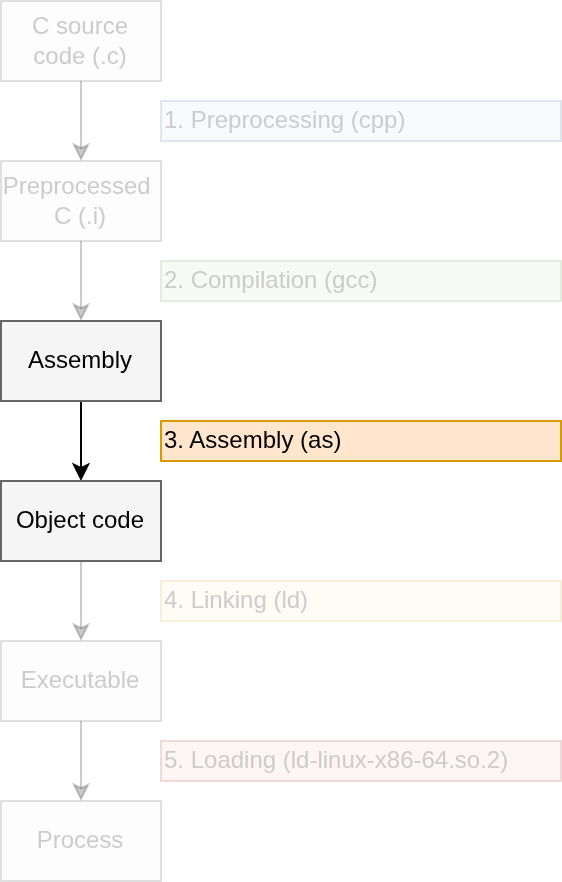

During assembly, a tool called the assembler converts assembly code into object code. Object code is binary machine code that is recognizable by the CPU, but not necessarily runnable (we’ll discuss more about that in the next section). Let’s use the GNU assembler, as, to convert our hello.s file from the last section to an object file, hello.o:

as hello.s -o hello.o

The resulting hello.o file will consist almost entirely of binary code that doesn’t correspond to English characters. Try opening hello.o in a text editor like Vim and see for yourself! Although you may see a few strings embedded in the binary, such as the "Hello, World!\n" string itself, most of the code will seem like gibberish.

To inspect the binary contents of hello.o, we’ll use another utility called objdump. We’ll use the -d flag to tell objdump to dissemble its output, i.e., turn it back into assembly:

objdump -d hello.o

In the resulting output, notice that the file format is elf64-x86-64. ELF stands for the executable and linkable format, and is the standard file format for executables on Unix machines. x86-64 specifies the target machine’s architecture. The following example thus reveals that when code is compiled, it is prepared to run on only a specific architecture:

hello.o:     file format elf64-x86-64

Disassembly of section .text:

0000000000000000 <main>:
 0: f3 0f 1e fa           endbr64
 4: 55                    push   %rbp
 5: 48 89 e5              mov    %rsp,%rbp
 8: 48 8d 05 00 00 00 00  lea    0x0(%rip),%rax # f <main+0xf>
 f: 48 89 c7              mov    %rax,%rdi
12: e8 00 00 00 00        call   17 <main+0x17>
17: b8 00 00 00 00        mov    $0x0,%eax
1c: 5d                    pop    %rbp
1d: c3                    ret

We can also pass the -t flag to objdump to view the object file’s symbol table. This contains, among other things, the names and definition locations of the functions the object code references.

objdump -t hello.o

In the resulting symbol table, notice that the definition of puts is listed as *UND*, or undefined. How can this be?

hello.o:     file format elf64-x86-64

SYMBOL TABLE:
0000000000000000 l    df *ABS*   0000000000000000 hello.c
0000000000000000 l    d  .text   0000000000000000 .text
0000000000000000 l    d  .rodata 0000000000000000 .rodata
0000000000000000 g     F .text   000000000000001e main
0000000000000000         *UND*   0000000000000000 puts

The reason that the definition location of puts is undefined is because our original C program, hello.c did in fact not define it. In order for the resulting object file, hello.o, to be able to call puts, we must perform the final step of the compilation process: linking.

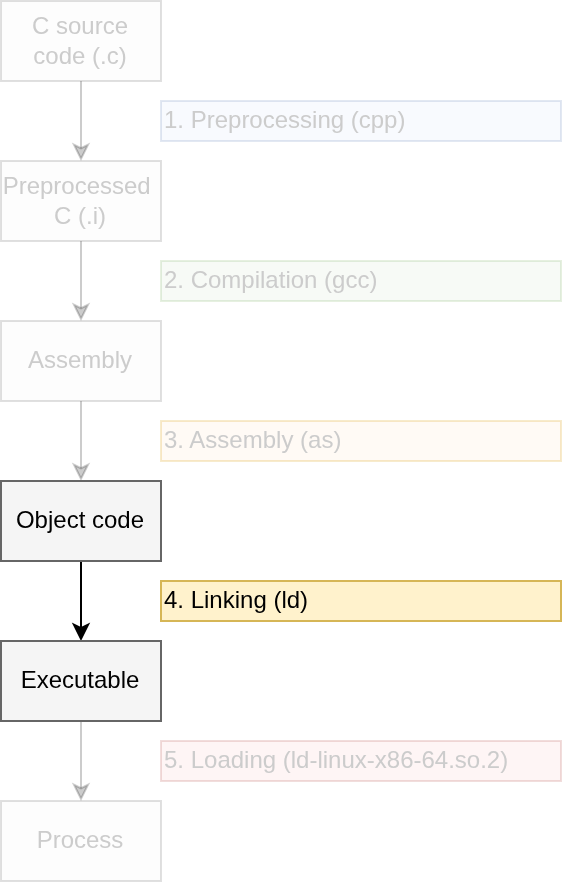

During linking, a tool called the linker combines object files, resolving references between them to form a final executable binary. In order to execute the object file hello.o, which we made in the last section, we’ll first need to link it with two libraries: the C runtime, which contains startup code for initializing and calling the main function, and the C standard library, which contains the definition of the puts() function that hello.o calls. These two libraries are normally linked with our C code automatically by GCC, but we can manually do the linking ourself with the ld utility (more on the --dynamic-linker argument further below):

ld  /usr/lib/x86_64-linux-gnu/crt1.o                \
    /usr/lib/x86_64-linux-gnu/libc.so               \
    hello.o                                         \
    --dynamic-linker /lib64/ld-linux-x86-64.so.2    \
    -o hello

The file /usr/lib/x86_64-linux-gnu/crt1.o contains the C runtime, and the file /usr/lib/x86_64-linux-gnu/libc.so is the C standard library. By default, these libraries will be dynamically linked with hello.o. Dynamic linking means that the definition of puts() (which, reminder, comes from /usr/lib/x86_64-linux-gnu/libc.so), will not be compiled into the resulting hello executable file. Instead, the hello executable will contain a reference to the file containing the definition of puts(). Check it out with objdump:

objdump -t hello | grep puts

In the output, the location of puts() is still listed as undefined, even though we just linked hello with the C standard library file containing the definition of puts():

0000000000000000 F *UND* 0000000000000000 puts@GLIBC_2.2.5

With dynamic linking, the reference hello makes to puts() will be resolved at the time hello is first run, by another program called a dynamic linker. We can specify the default dynamic linker for our program with the --dynamic-linker argument to ld; in this case /lib64/ld-linux-x86-64.so.2 specified above.

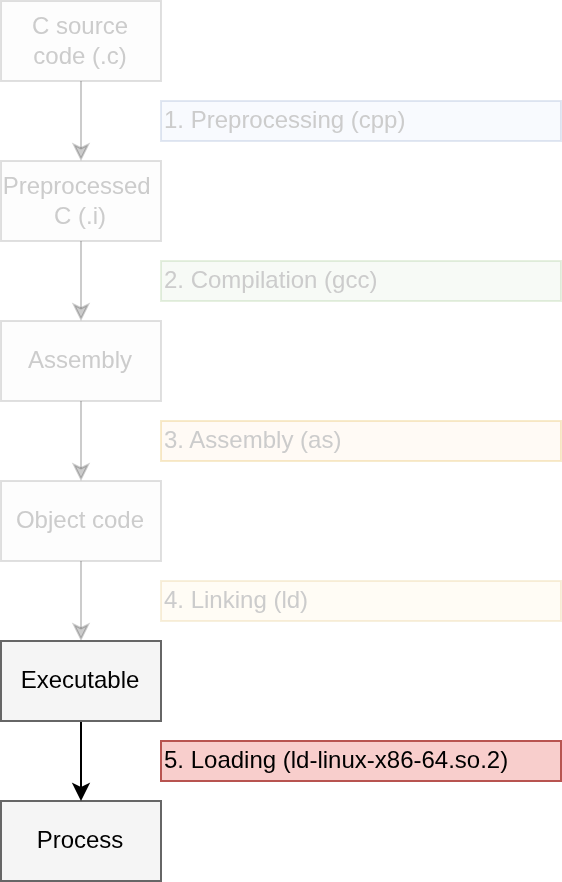

During loading, the loader loads the program into memory, resolves references to any symbols in libraries the loaded program is dynamically linked with, and then runs the program. Usually, loading can be done by just running the program directly; for instance, we can load our hello binary we made in the last step by just running it like so:

./hello

The Linux kernel’s loader will load hello into memory, then run the dynamic linker that we specified for hello during linking, /lib64/ld-linux-x86-64.so.2. We can verify that this dynamic linker has been set as the default for hello by using the ldd utility to view the shared objects hello depends on:

ldd hello

The last line of the output shows that hello depends on the dynamic linker /lib64/ld-linux-x86-64.so.2 (other lines omitted for concision):

/lib64/ld-linux-x86-64.so.2 (0x00007b419e6a8000)

We can also invoke the loader directly; in this case, the Linux kernel’s internal loader will first load /lib64/ld-linux-x86-64.so.2 into memory, and then run it to resolve references hello makes to the C standard library (put()), and then run hello.

/lib64/ld-linux-x86-64.so.2 ./hello

/lib64/ld-linux-x86-64.so.2 will load hello into memory, resolve any references hello has to any symbols in shared libraries (puts()), and then run it. See man ld.so(8) for more details on how the dynamic linker works.

To see static linking in action, let’s repeat all the previous steps to compile and run our hello program, this time replacing the commands we used to perform dynamic linking with he appropriate commands to perform static linking. As a refresher, here’s our hello.c file:

#include <stdio.h>

int main(void) {
  puts("Hello, world!\n");
}

We’ll preprocess, compile, and assemble this file with the same commands we used earlier:

gcc -E hello.c -o hello.i
gcc -S hello.i -o hello.s
as hello.s -o hello.o

To statically link this program, we’ll invoke the ld utility with the -static flag. Then we specify all the necessary object (.o) and static library (AKA “archive”, .a) files our C program will need to run:

ld                                                  \
    -static                                         \
    -o hello                                        \
    /usr/lib/x86_64-linux-gnu/crt1.o                \
    /usr/lib/x86_64-linux-gnu/crti.o                \
    /usr/lib/gcc/x86_64-linux-gnu/13/crtbeginT.o    \
    hello.o                                         \
    --start-group                                   \
    /usr/lib/gcc/x86_64-linux-gnu/13/libgcc.a       \
    /usr/lib/gcc/x86_64-linux-gnu/13/libgcc_eh.a    \
    /usr/lib/x86_64-linux-gnu/libc.a                \
    --end-group                                     \
    /usr/lib/gcc/x86_64-linux-gnu/13/crtend.o       \
    /usr/lib/x86_64-linux-gnu/crtn.o

That’s a lot of files and flags! Here’s a brief summary of what they are all for:

• crt1.o: _start symbol and call to main
• crti.o: initialization code
• crtbeginT.o: finds the start of C++ constructors (T suffix for static version)
• hello.o: our object file
• --start-group: start a group of files for resolving circular references
• libgcc.a: helper functions that all code compiled with GCC assumes it can call
• libgcc_eh.a: C++ exception handling
• libc.a: static library implementation of the C standard library
• --end-group: end a group of files for resolving circular references
• crtend.o: finds the start of C++ destructors
• crtn.o: cleanup code

We can verify that our statically-linked executable works by running it:

./hello

And we can also check that the executable does in fact contain the definition the puts() function with objdump -t, combined with a call to grep to filter the output:

objdump -t hello | grep '\<puts\>'

The output shows that the binary’s .text section contains the definition of puts(); verifying that this executable does not need to be dynamically linked with the C standard library to find the definition of puts() at runtime:

0000000000404d30  w    F .text  0000000000000226 puts

Separate compilation refers to the act of compiling multiple distinct source files to form a single executable.

Linking makes separate compilation possible by resolving references to functions defined and called across separate files.

To see this in action, let’s look at two files, main.c and foo.c. main.c calls the function foo(), which is defined in foo.c:

int main(void) {
  int x = foo();
  return 0;
}

int foo(void) { return 42; }

We follow the steps we’ve seen in this lecture compile these two programs separately:

gcc -E f.c -o f.i
gcc -S f.i -o f.s
gcc -c f.s -o f.o
gcc -E main.c -o main.i
gcc -S main.i -o main.s
gcc -c main.s -o main.o

Notice that the command gcc -S main.i -o main.s raises a warning about an implicit declaration of foo(). This is because main.c does indeed lack a declaration of the function foo(), with it being defined in foo.c instead. We run objdump on main.o and foo.o to verify this:

echo main.o:
objdump -t main.o | grep '\<foo\>'

echo foo.o:
objdump -t foo.o | grep '\<foo\>$'

This shows that foo() is in fact undefined in main.o, and defined only in foo.o:

main.o:
0000000000000000         *UND*  0000000000000000 foo
foo.o:
0000000000000000 g     F .text  000000000000000f foo

To produce an executable binary, we can use gcc to link these two files together, resolving main()’s reference to foo():

gcc foo.o main.o -o main
