Current Version: Elaboration Iteration 2, Started 8/27/2003
Elaboration Iteration 1, Completed 11/14/2002
Inception, Completed 9/5/2002

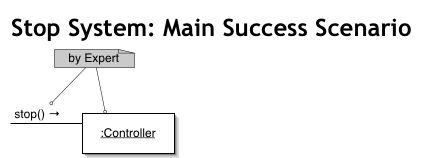

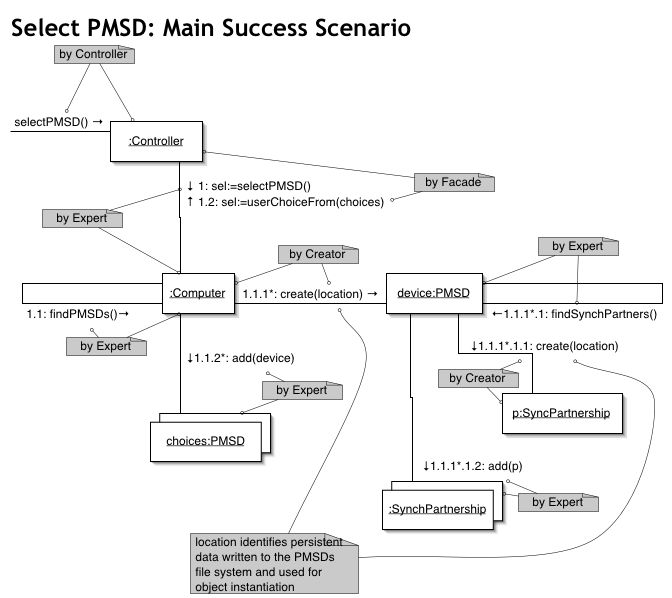

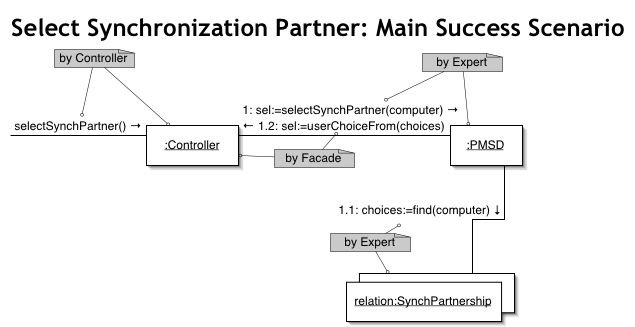

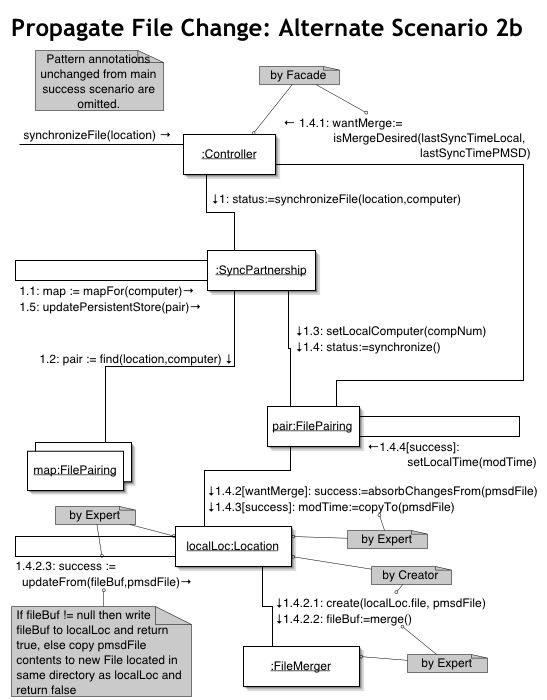

Interaction Diagrams

This page includes all the interaction diagrams for the StickSync project.

There are several images on this page. If you have a slow connection you may want to access the diagrams from the links in the use case model, which allow you to download the diagrams one at a time.






















Return to top

Last modified Tuesday, September 16, 2003.
